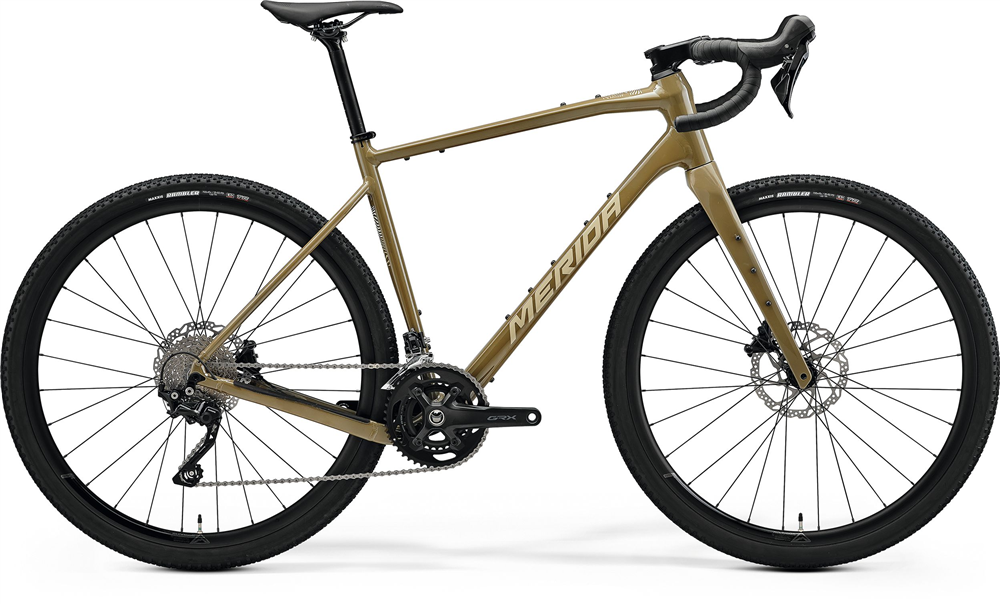

Merida Silex | Specification
See below for the specification of the Merida Silex, contact us if you would like an alteration to a specification and for availability:
SpecificationFrame
Lite II - 6066 triple butted hydroformed and smooth welded
aluminium with internal cable routing. Tapered head tube, Inboard disc mounts.
Threaded BB, 142 x 12mm axle standard, Max tyre size 700 x 45c (42c with
mudguards)
Fork
Merida Silex II CF2; Tapered; material: carbon; 700x47C max.
tyre size
Gears
20
Shifters
Front: Shimano GRX 400; disc, Rear: Shimano GRX 400; disc
Front Derailleur
Shimano GRX400
Rear Derailleur
Shimano GRX400
Bottom Bracket
attached
Chain
KMC X10
Chainset
Shimano GRX600; 46-30 tooth chainset; Crank length: (XXS-XS)
- 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Cassette
Shimano CS-HG50; 11-36 teeth; 10 speed
Brake Lever
Shimano GRX 410
Front Brake
Shimano GRX400; Hydraulic disc with Shimano RT54; 180mm
Rear Brake
Shimano GRX400; Hydraulic disc with Shimano RT54; 180mm
Grip
Merida Road Expert
Handlebar
Merida Expert GRII; material: aluminium; (XXS-S) - 400mm
wide, M - 420mm wide, (L-XL) - 440mm wide
Stem
Merida Team CC III; material: aluminium; 31.8 mm diameter;
-6 degree rise; Length: 80mm all sizes
Head Set
Acros ICR Merida External neck w/diecast splitring
Pedal
Not included
Saddle
Merida Comp SL; 25% recycled material; V-mount
Seat Post
Merida Comp CC; 27.2mm diameter; in-line; material:
aluminium
Wheel Size
700c
Rims
Merida Expert SL III; 23mm inner rim width; material:
aluminium; Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Front Hub
Shimano HB-TC500; 100x12mm; 28 spoke; Centerlock
Rear Hub
Shimano FH-TC500-HM; 12-142mm; 28 Spoke; Centerlock
Front Tyre
Maxxis Rambler; 700x45C; kevlar bead; TR; EXO
Rear Tyre
Maxxis Rambler; 700x45C; kevlar bead; TR; EXO
Colour
Oak Bork (Earth Powder)
Season
2026
Other
Disc cooler F
