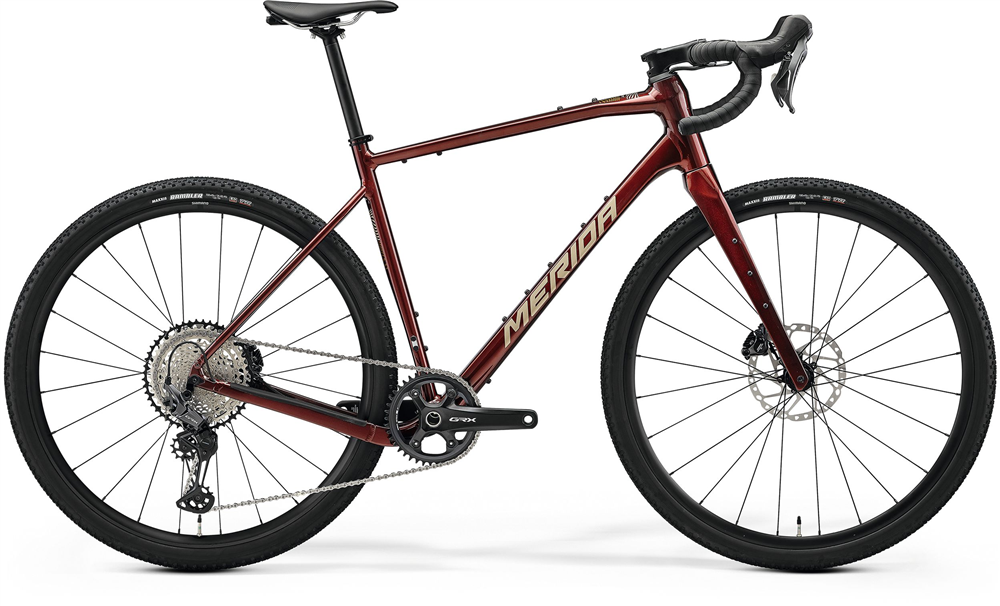

Merida Silex | Specification
See below for the specification of the Merida Silex, contact us if you would like an alteration to a specification and for availability:
SpecificationFrame
Lite II - 6066 triple butted hydroformed and smooth welded
aluminium with internal cable routing. Tapered head tube, Inboard disc mounts.
Threaded BB, 142 x 12mm axle standard, Max tyre size 700 x 45c (42c with
mudguards)
Fork
Merida Silex II CF2; Tapered; material: carbon; 700x47C max.
tyre size
Gears
12
Shifters
Front: Shimano GRX820, Rear: Shimano GRX820
Rear Derailleur
Shimano GRX822
Bottom Bracket
Shimano SM-BBR60
Chain
Shimano M6100-12
Chainset
Shimano GRX820; 42 tooth chainset; Crank length: (XXS-M) -
170mm, (L-XL) - 172.5mm
Cassette
Shimano M7100; 10-51 teeth; 12 speed
Brake Lever
Shimano GRX820
Front Brake
Shimano GRX820; Hydraulic disc with Shimano RT64; 180mm
Rear Brake
Shimano GRX820; Hydraulic disc with Shimano RT64; 180mm
Grip
Merida Road Expert
Handlebar
Merida Expert GRII; material: aluminium; (XXS-S) - 400mm
wide, M - 420mm wide, (L-XL) - 440mm wide
Stem
Merida Team CC III; material: aluminium; 31.8 mm diameter;
-6 degree rise; Length: 80mm all sizes
Head Set
Acros ICR Merida External neck w/diecast splitring
Pedal
Not included
Saddle
Merida Expert SL; 6% recycled and 23% nature material;
V-mount; incl. Merida minitool
Seat Post
Merida Expert SL; 27.2mm diameter; in-line; material: carbon
Wheel Size
700c
Rims
Shimano WH-RX180-700C; CL; 100x12mm; 142x12mm; 25mm inner
rim width; 25mm rim depth; Centerlock; material: aluminium
Spokes
Part of wheelset - Shimano WH-RX180-700C
Front Hub
Part of wheelset - Shimano WH-RX180-700C
Rear Hub
Part of wheelest - Shimano WH-RX180-700C
Front Tyre
Maxxis Rambler; 700x45C; kevlar bead; TR; EXO
Rear Tyre
Maxxis Rambler; 700x45C; kevlar bead; TR; EXO
Colour
Elegant Wildberry (High Cream)
Season
2026
Other
Garmin Carrier + Garmin insert*2 + GoPro/Light Mount - Disc
cooler F and Merida Multitool with saddlebox
